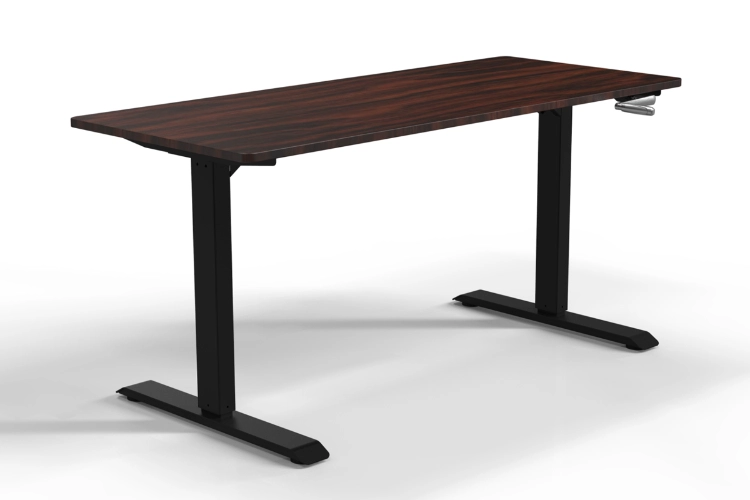

2-leg hand-crank standing desk frame
The cost-effective solution for open-plan offices with hand-crank 2-leg standing desk frames.
Focus on environmental and humanistic design concepts.
The hand-crank standing desk frame stands out for its user-friendly features. Its smooth hand-crank mechanisms enable easy height adjustments without the need for electricity. This makes it a reliable option, unaffected by power shortages or sudden outages. Unlike motor-driven standing desk frames, the hand-crank standing desk frames require manual operation, with users simply turning a handle to effortlessly transition between sitting and standing positions.
This manual operation not only enhances user control but also offers a cost-effective solution for those on a budget providing the benefits of height adjustable desk without the high price. Additionally, the absence of electricity usage makes these desks an eco-friendly choice, appealing to environmentally conscious consumers looking to reduce their carbon footprint and minimize energy consumption.
Applications: Office single workstations, Co-working stations, Home offices.
Parameter
| Model | H220 series |
|---|---|
| Product name | Hand-crank straight desk |
| Drive mode | Manual |
| Stages | 2 stages |
| Max loading | 60kg | 132lbs |
| Speed | 6mm/crank turn 0.24"/crank turn |
| Height range | 700-1200mm (27.5"-47.2") / Customized |
| Beam | W: 1090-1450mm | 42.9"-57.1" Double beams / Customized |
| Bracket | L: 575mm (22.6") / Customized |
| Tube shape & size | Square 75*75mm | 2.95"*2.95" Rectangular 80*50mm | 3.15"*1.97" |
| Column shape | Upwards / Downwards |
| Desk foot | Slope / Flat shape L: 700mm (27.5") / Customized |
| Thickness of painting | 60-120μm |
| Colors | White / Black / Grey / Customized |
| G.W. | 23kg | 50lbs |
| Package size | 108 * 27 * 23cm 42.5"*10.6"*9.1" |
| Container loading capacity | 288pcs/20GP; 648pcs/40GP; 720pcs/40HQ (With pallets) |
| Warranty | 3years |
| Suitable tabletop size | W: 1100-1500mm W: 43.3"-59.1" |
