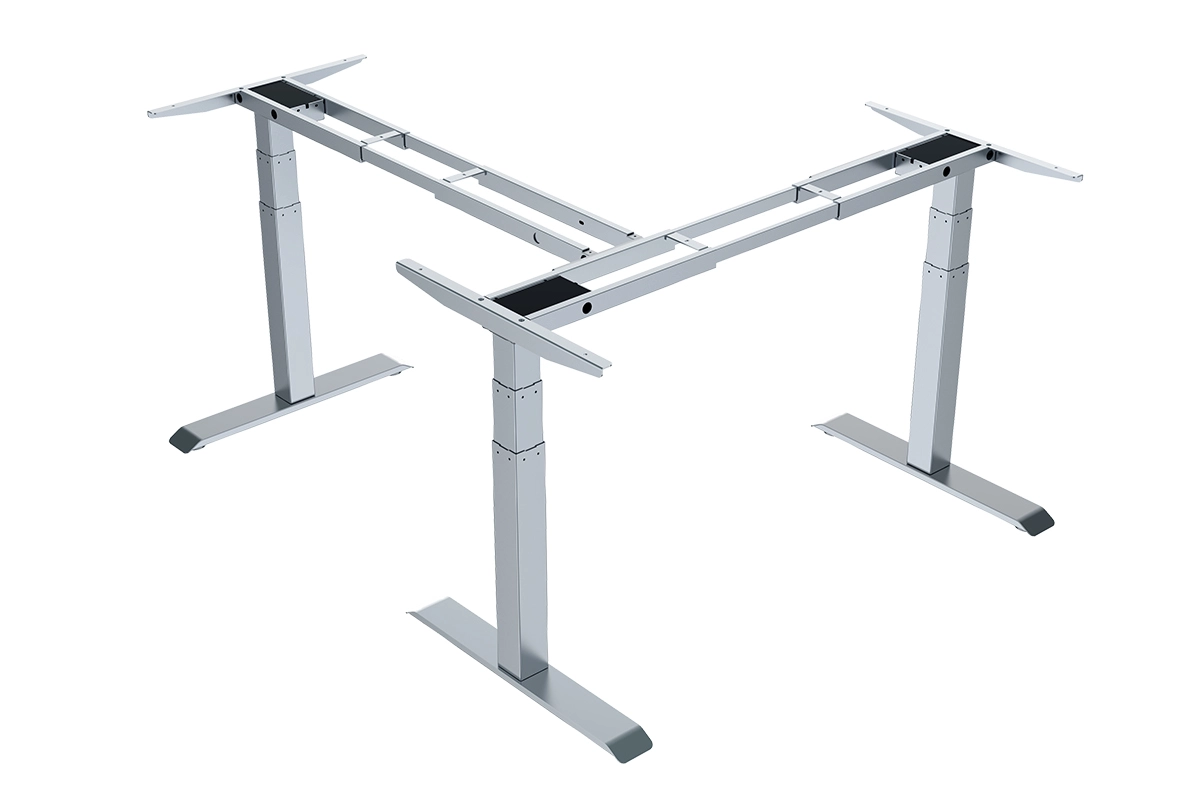

Electric motor driven height adjustable L-shape 3-motor standing desk frame-Vakadesk

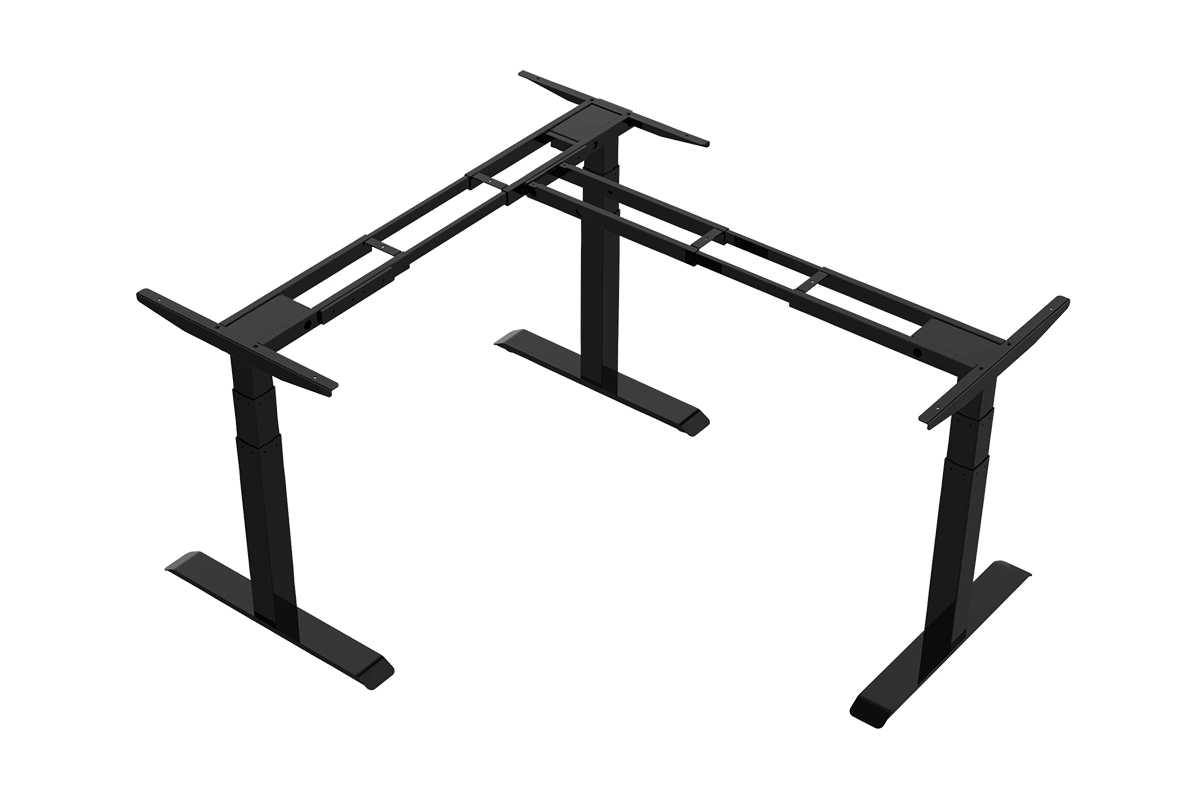

Electric motor driven height adjustable L-shape 90° desk frame 23 -Vakadesk

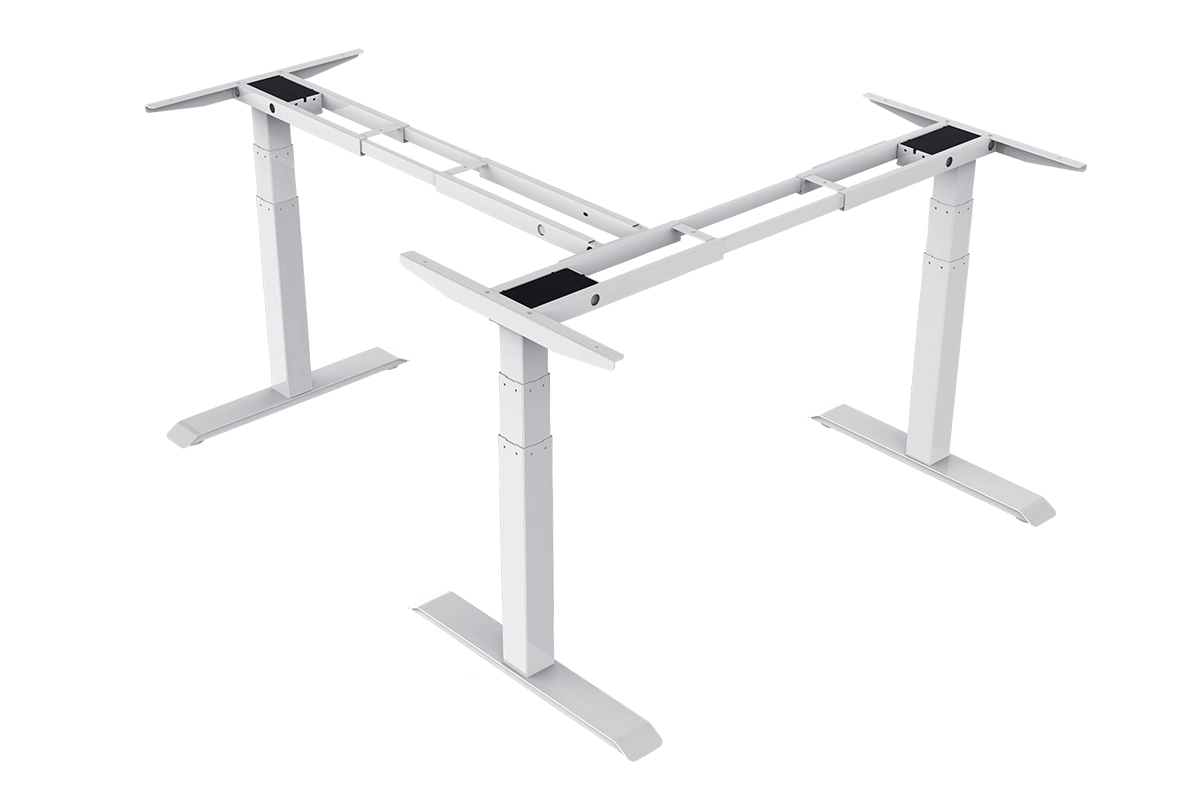

Electric motor driven height adjustable L-shape 90° desk frame 31 -Vakadesk

Electric motor driven height adjustable corner table 23 -Vaka (1)

Timtion & SAJ & Vaka handset -Vakadesk

Standing desk leg options -Vakadesk

Standing desk foot options -Vakadesk

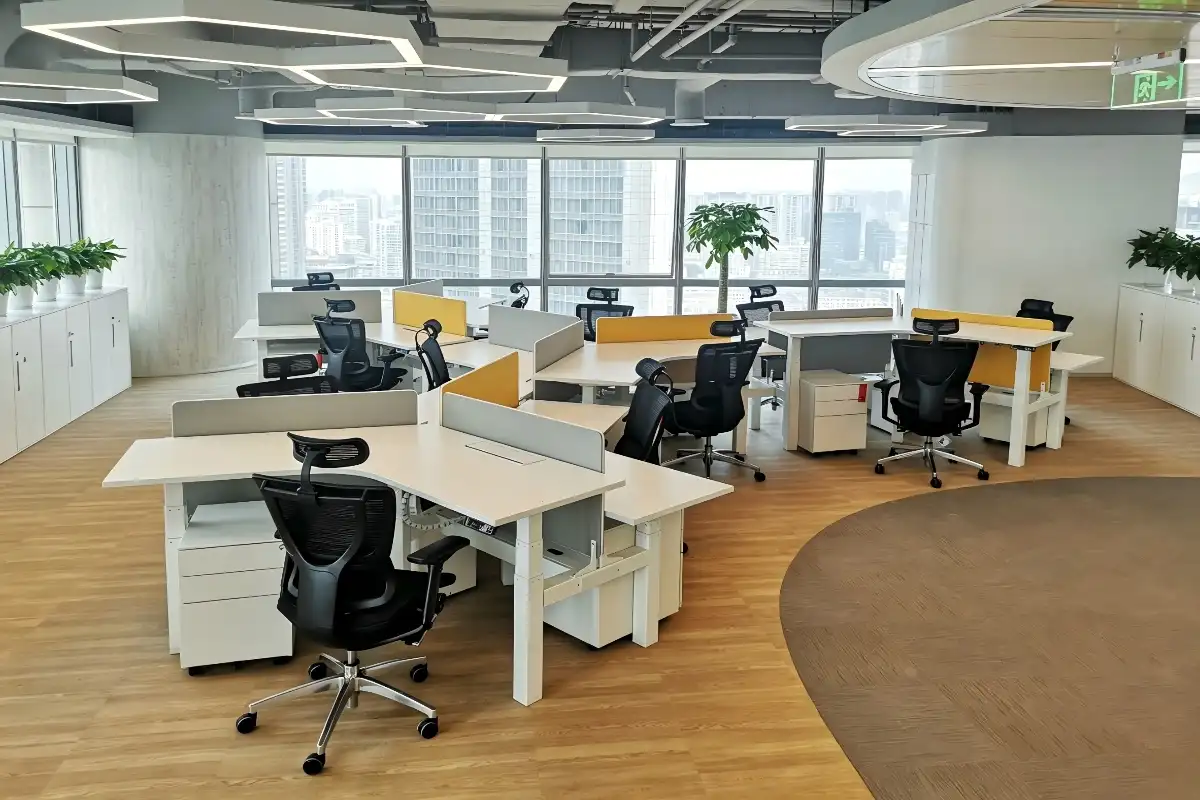

L-shape sit-to-stand desk boss table by Vaka (1)

3-leg L-shape 3-motor standing desk frame 90°

The L-shape electric height adjustable desk allows users to maintain an ergonomic posture both while standing and sitting, so that can improve blood circulation, reduce backache/pain/stress/tension, and feel better as work/study.

Description

The L-shape 3-motor standing desk frame provides ample space for multitasking, accommodating multiple monitors, equipment, and accessories while optimizing workflow efficiency, suitable for boss and manager ergonomic height adjustable tables.

Highlights:

Durable & stable — Adopt electric control systems from Timotion and SAJ.
Quality material — Stainless steel thickness from 1.2~1.5mm; Powder coating thickness 60~120μm ensures the textured & elegant surface without orange peel.
Quiet — Noise rate is less than the buzzing of a refrigerator when it’s working.
Stable — Loading capacity up to 160kg. — High-weight capacity suitable for heavy-duty use and accommodates multiple monitors or other equipment.
Safe — Sensitive anti-collision function.
Optional: Bluetooth function, safety screen lock function, etc.
Quality service — Low MOQ for OEM & ODM customization.

Applications: Office single workstation, Co-workstation, Boss table, Manager table, Home office studio.

Parameter

Model	T330-90 series	U330-90 series
Product name	L-shape 3-motor standing desk frame 90°
Drive mode	3 motors
Stages	3 stages
Max loading	160kg \| 352lbs	150kg \| 330lbs
Speed	35mm/S \| 1.38″/S	32mm/S \| 1.26″/S
Noise rate	＜39DB	＜49DB
Height range	640-1290mm \| 25.3″-50.8″ / Customized
Beam	Double beams Main frame: 1075-1800mm \| 42.3″-70.8″(W) / Customized Side frame: 1375-1800mm \| 54.1″-70.8″ / Customized
Bracket	600mm \| 23.6”(L) / Customized
Tube shape & size	Square 7575mm \| 2.95″2.95″ Rectangular 8050mm \| 3.15″1.97″
Column shape	Upwards / Downwards
Thickness of painting	60-120μm
Colors	White / Black / Grey / Customized
Functions options	Anti-collision Max & min height reset	Anti-collision Safety child lock Max & min height reset
Available voltage	100V-240V; 50/60Hz
Control systems brand	Timotion	Vaka
Plug standard	US / UK / EU / AU
Handset	4-memory buttons	3-memory buttons
Certificate	CE, UL, SAA, RoHS, BIFMA
G.W.	56kg \| 123.5lbs	52kg \| 114.6lbs
Package size	Box A: 88 * 48 * 14cm Box B: 138 * 32 * 20cm	Box A: 108 * 45 * 14cm Box B: 79 * 44 * 17cm
Container loading capacity	208pcs/20GP; 464pcs/40GP; 540pcs/40HQ (With pallets)
Warranty	5years
Suitable tabletop size	1400-2000mm \| 55.1”-78.7”(W)

FAQ

A: Sure, we are eager to align with local companies and make a long-term partnership. For more details, kindly contact Vaka sales teams.

A: Yes, we have ISO 9001:2008, ISO4001:2004, CE, UL, TUV, EMC, SAA, BIMFA, etc.

A: Our wholesale MOQ is 30 sets, and sample orders’ MOQ is 1 set.

A: Yes. Our OEM&ODM service includes customizing product sizes, branding(eg: Putting your logo on the cartons, Printing your logo on the LED display), etc. The MOQ depends on your specific demands. Please contact our sales team for more details.

A: Around 15-30 working days for bulk orders, and 5 working days for samples. Special conditions need to be discussed.

A: We support a 5-year warranty for all parts, and replace defective parts one-for-one.

A: T/T, Paypal, Western Union, Moneygram, Paypal, etc. 30% deposit before mass production, and 70% for the balance before the shipment. But 100% payment for sample orders.

A: Sample orders are generally shipped by express, like DHL/UPS/FEDEX/TNT/ARMES.
Other order quantities over 10 sets are shipped by sea/train/truck.
Our sales teams will suggest the best shipping solution for you.

A: Sure welcome to visit our company Vaka in Guangzhou China. You just need to contact our sales teams to make the appointment, and we’ll arrange to pick you up at the airport or railway station once you arrive.
