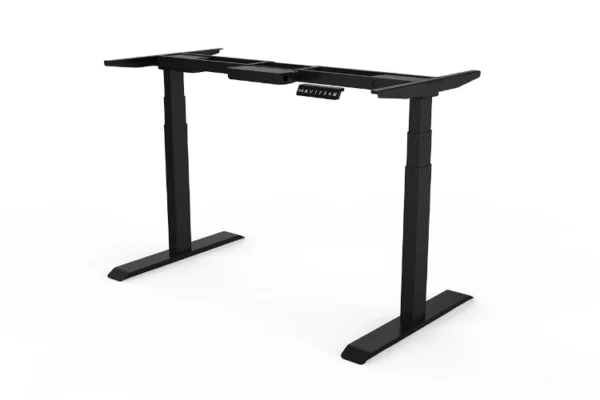

2-leg 2-motor standing desk
A motor-driven adjustable-height sit-stand desk allows users to maintain an ergonomic posture both while standing and sitting in seconds, so that can improve blood circulation, reduce backache/pain/stress/tension, and feel better as work/study.
The 2-motor standing desk frame features electric control systems that allow users to adjust desk heights and to maintain ergonomic postures both while standing and sitting in seconds, so that improves blood circulation, reduces backache/pain/stress/tension, and feel better as work/study.
Highlights:
- Durable & stable — Adopt electric control systems from Timotion and SAJ.
- Quality material — Stainless steel thickness from 1.2~1.5mm; Powder coating thickness 60~120μm ensures the textured & elegant surface without orange peel.
- Quiet — Noise rate is less than the buzzing of a refrigerator when it’s working.
- Stable — Loading capacity ranges from 120kg to 150kg. — High-weight capacity suitable for heavy-duty use and accommodates multiple monitors or other equipment.
- Safe — Sensitive anti-collision function.
- Optional: Bluetooth function, safety screen lock function, etc.
- Quality service — Low MOQ for OEM ODM customization.
Applications: Office single workstation, Co-working station, Boss table, Home office.
Parameter
Model | T320 series | U320 series | M320 series |
---|---|---|---|
Product name | Dual-motor straight desk | ||
Drive mode | 2 motors | ||
Stages | 3 stages | ||
Max loading | 150kg | 120kg | 120kg |
Speed | 40mm/S | 32mm/S | 32mm/S |
Noise rate | <39DB | <49DB | <49DB |
Height range | 640—1290mm / Customized | 640—1290mm / Customized | 610—1260mm / Customized |
Beam | Double beams 1075-1800mm(W) / Customized | Double beams 1075-1800mm(W) / Customized | Double beams 1010-1700mm(W) / Customized |
Bracket | 600mm(L) / Customized | 600mm(L) / Customized | 575mm(L) / Customized |
Tube shape & size | Square 75*75mm / Rectangular 80*50mm | ||
Column shape | Upwards / Downwards | ||
Desk foot | Slope / Flat shape; 700mm(L) / Customized | ||
Thickness of painting | 60-120μm | 60-120μm | 60-120μm |
Colors | White / Black / Grey / Customized | ||
Functions options | Anti-collision Max & min height reset | Anti-collision Safety child lock Max & min height reset | Anti-collision Safety child lock Max & min height reset |
Available voltage | 100V-240V; 50/60Hz | ||
Control systems brand | Timotion | Vaka | SAJ |
Handset | 4-memory buttons | 3-memory buttons | 3-memory buttons |
Certificate | CE, SAA, RoHS, CUL, BIFMA | ||
G.W. | 30.5kg | 30kg | 29.5kg |
Package size | 108 * 32 * 22cm | 108 * 32 * 22cm | 108 * 27 * 24cm |
Container loading capacity | 288pcs/20GP; 648pcs/40GP; 720pcs/40HQ (With pallets) | ||
Warranty | 5years | ||
Suitable tabletop size | 1100-2000mm(W) | 1100-1800mm(W) | 1100-1800mm(W) |
